PIPE REPAIR CLAMPS / FULL CIRCUMFERENTIAL REPAIR
04 / TOP FIX — TWO BANDS

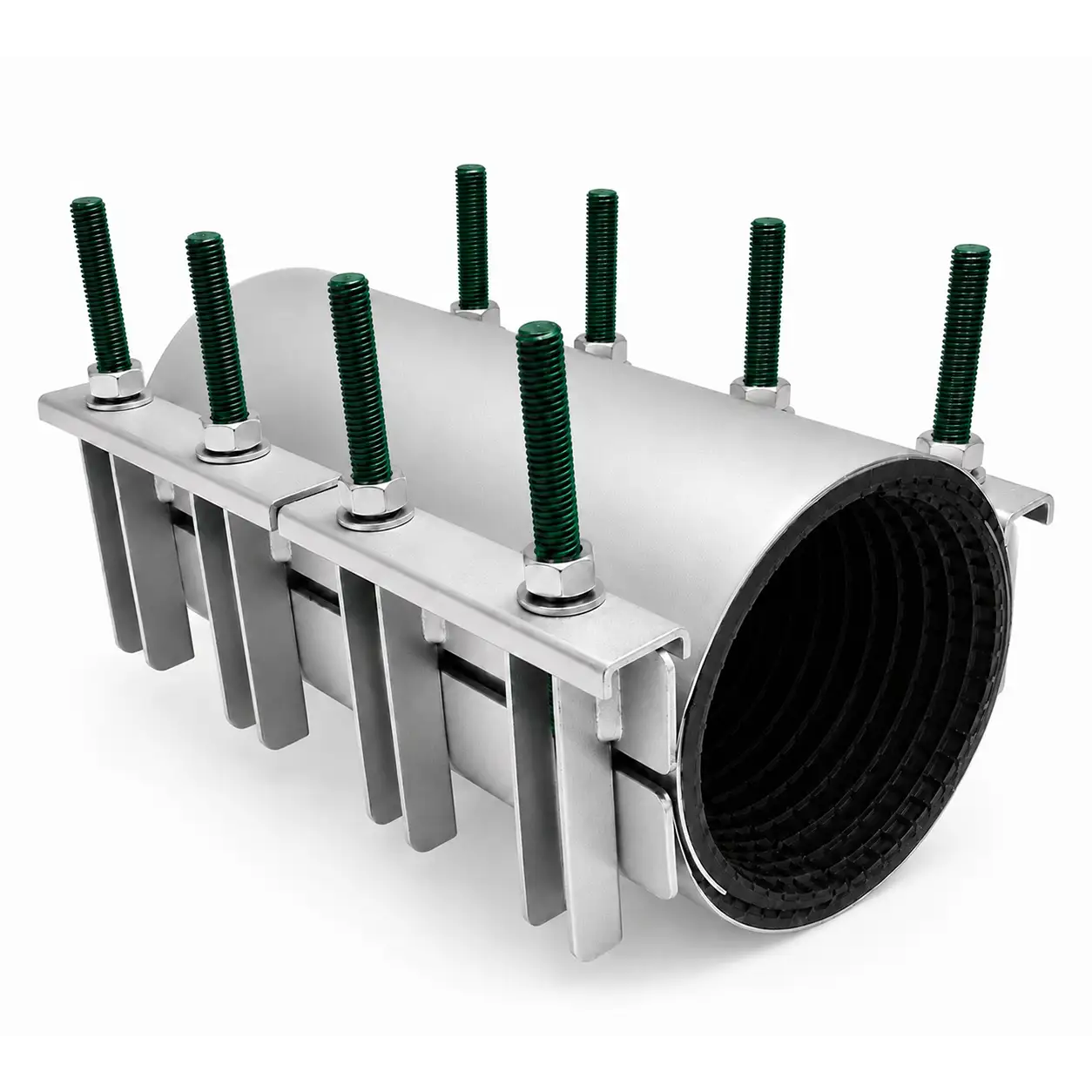

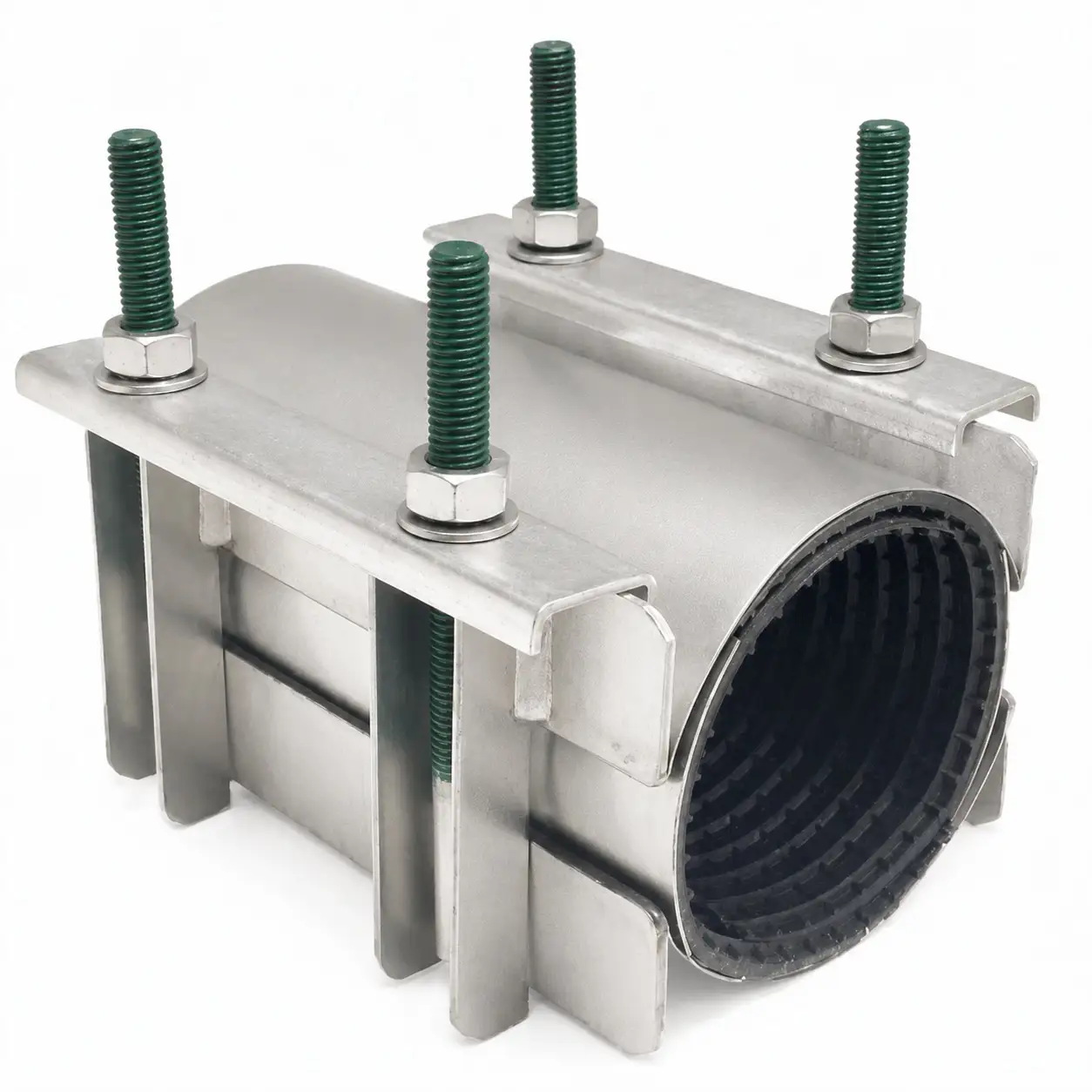

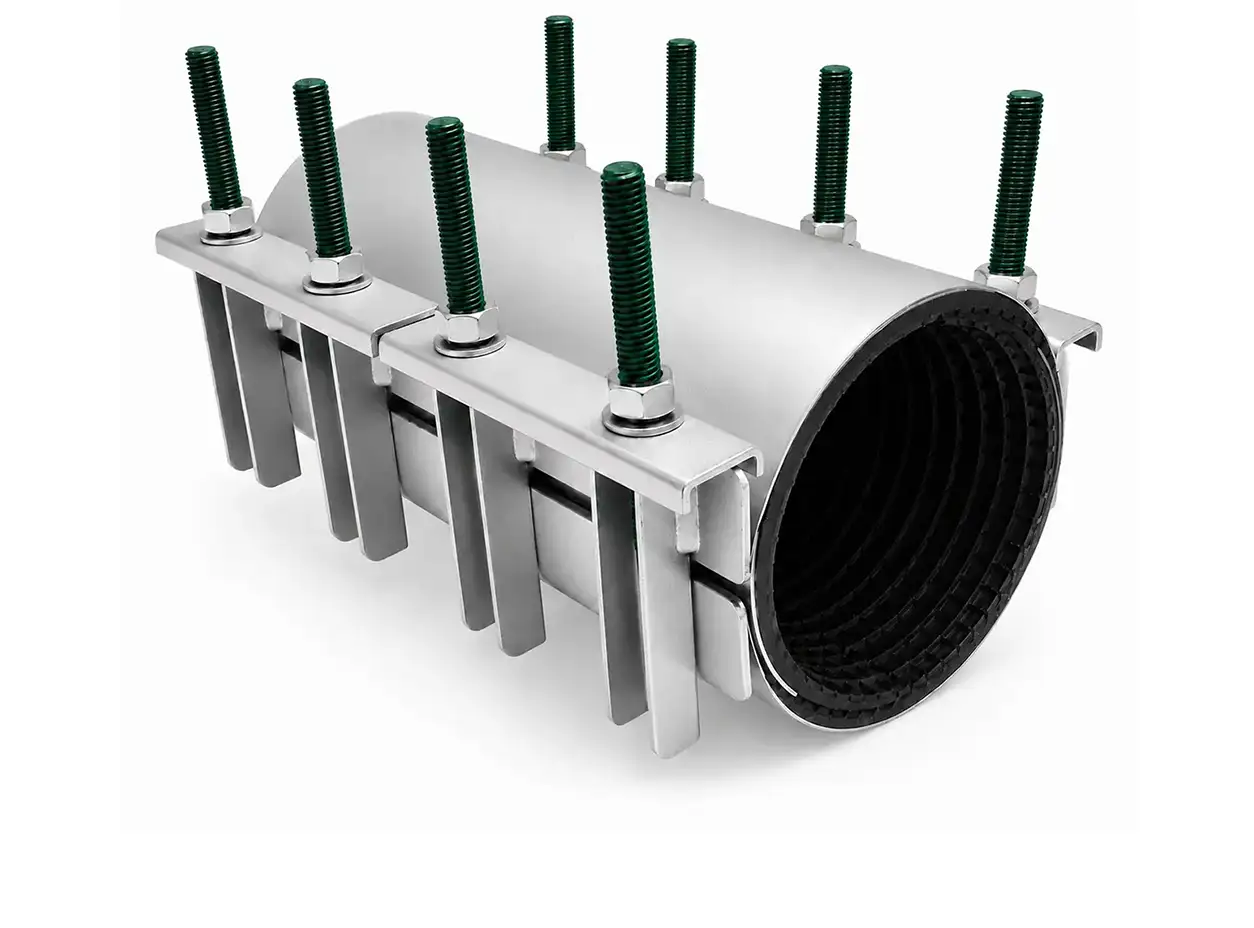

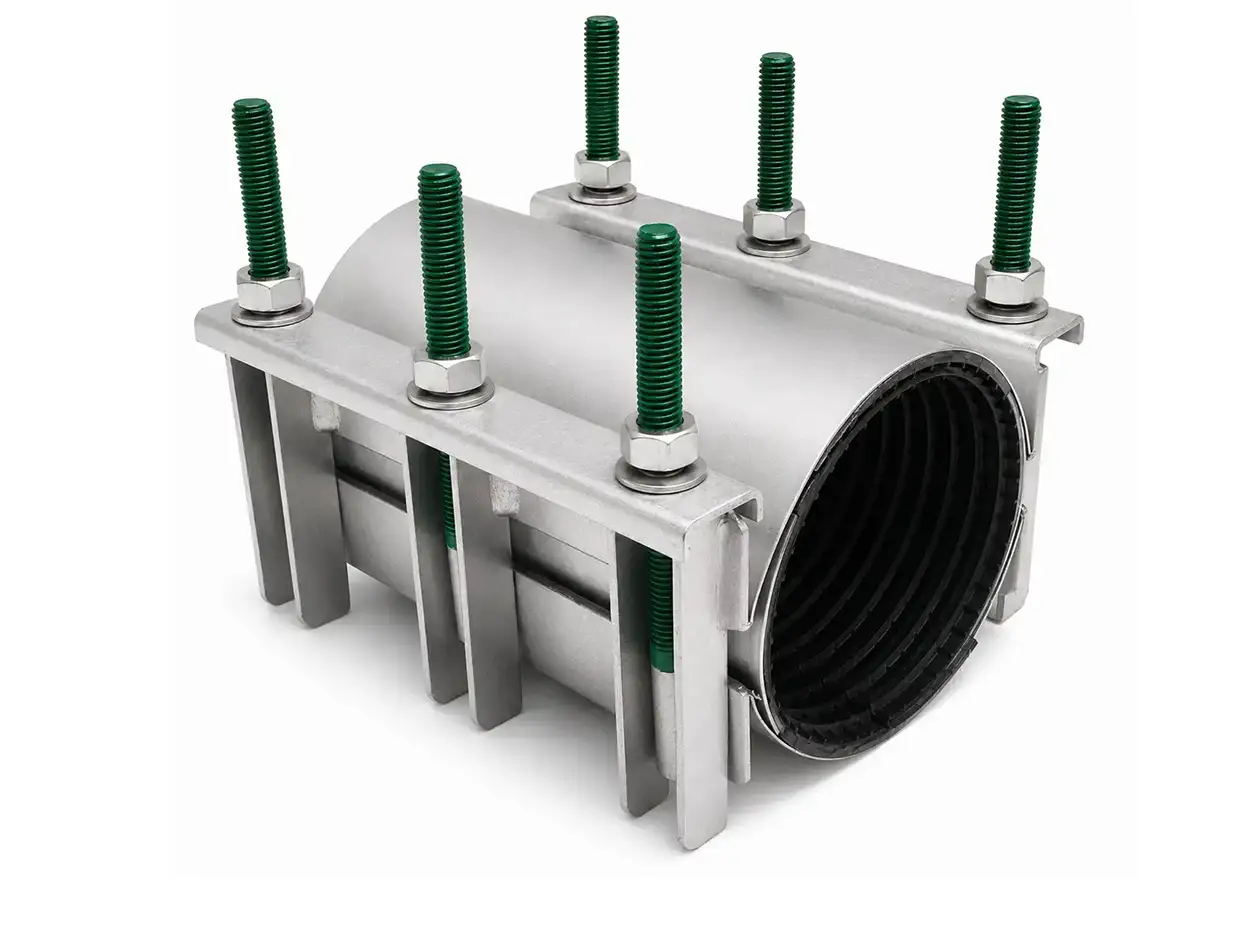

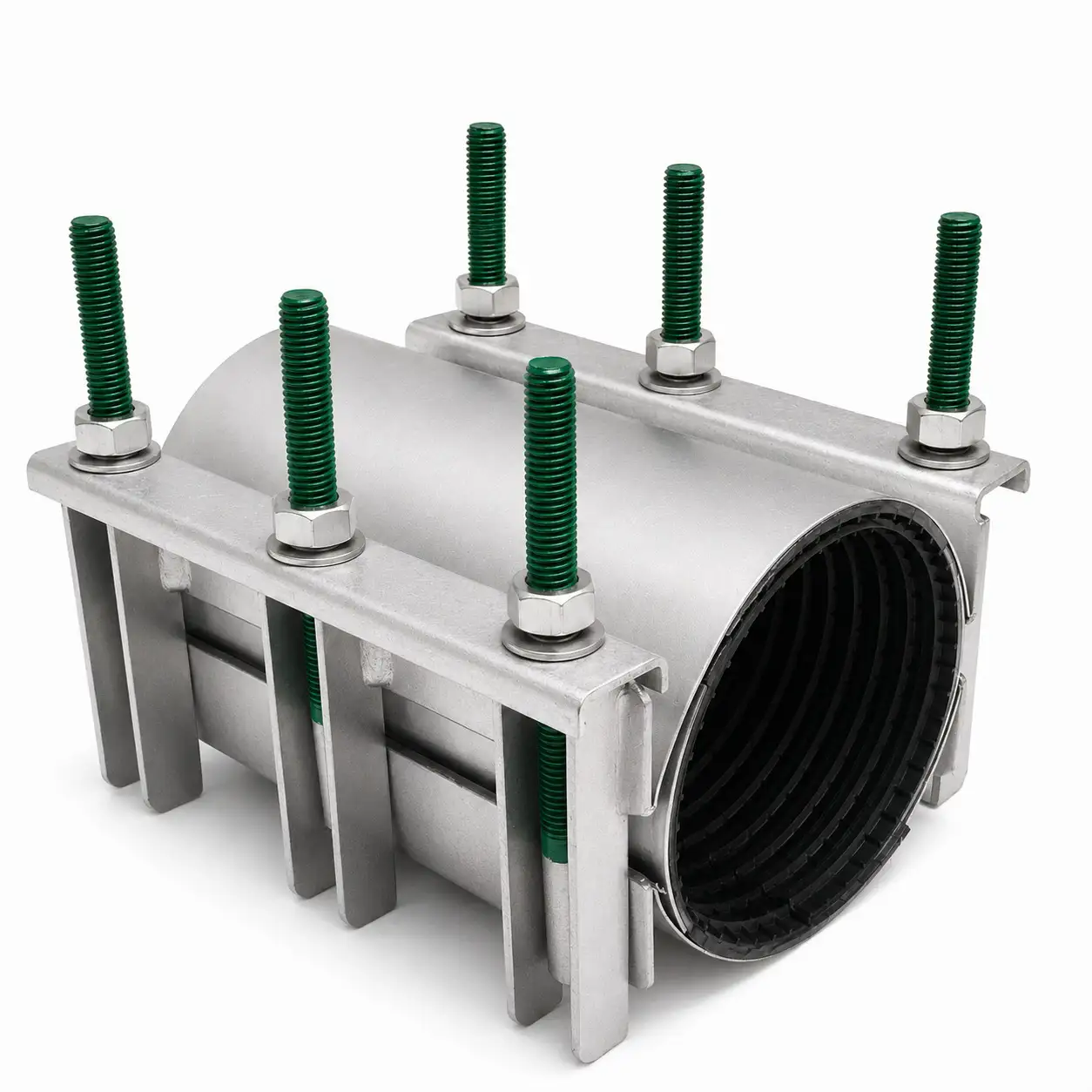

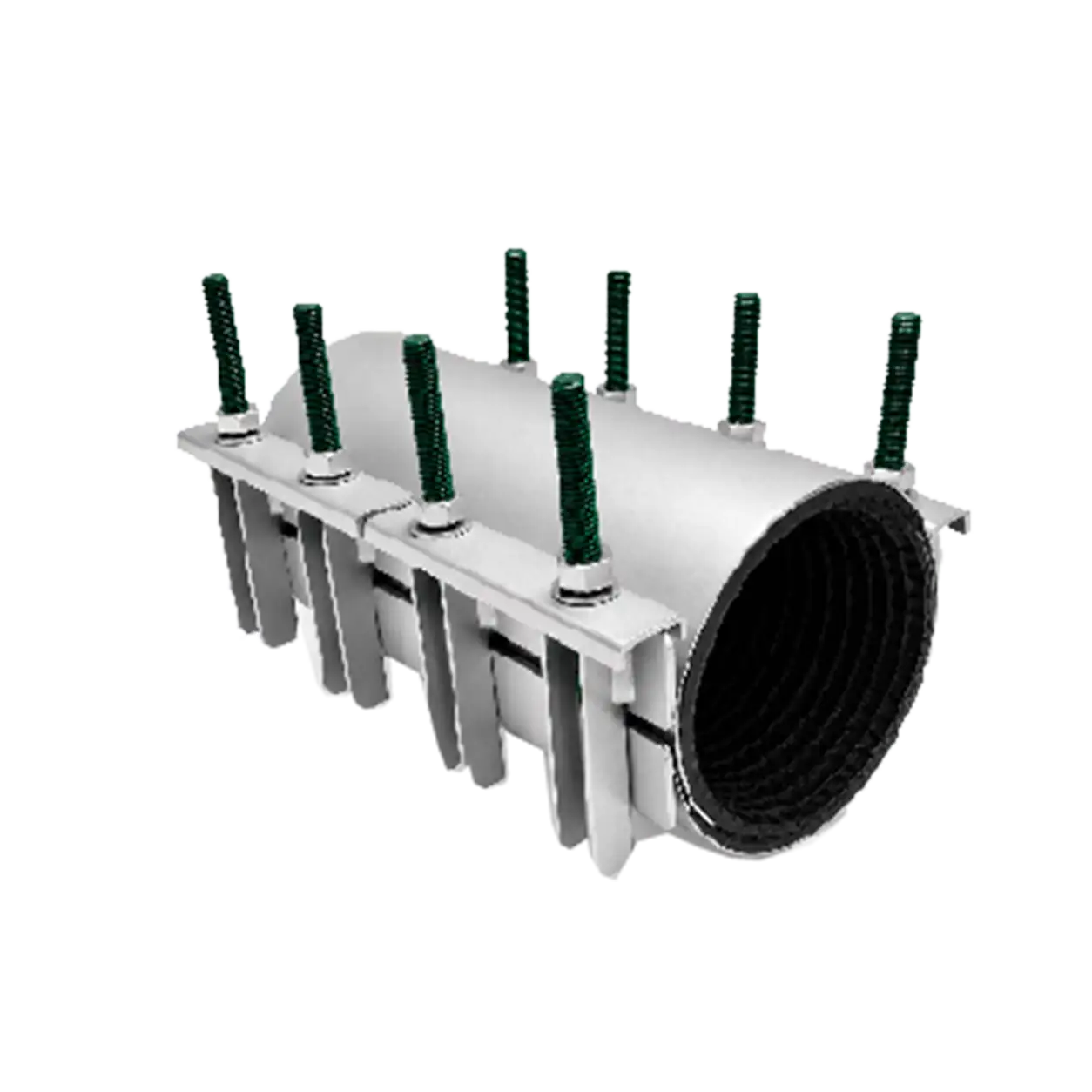

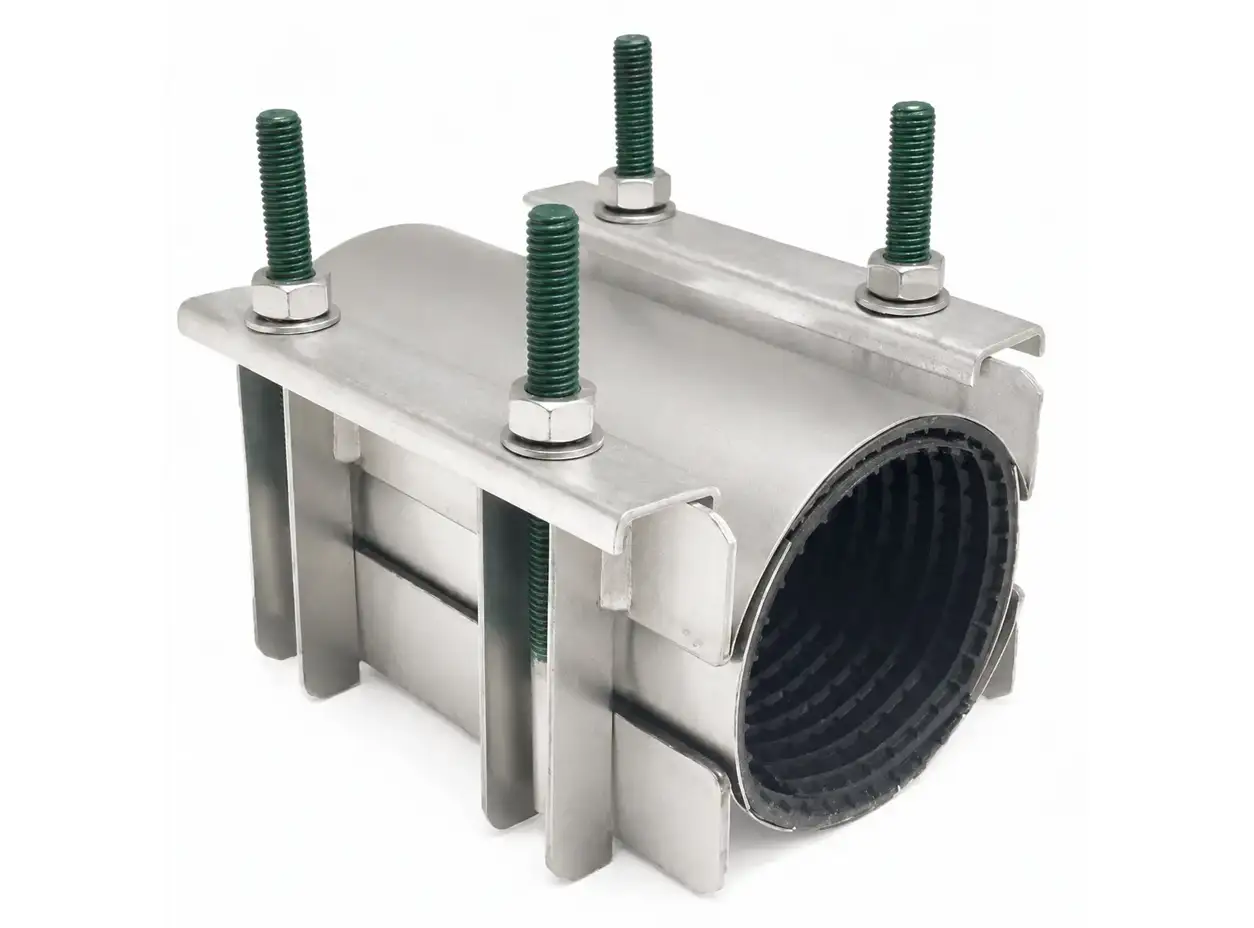

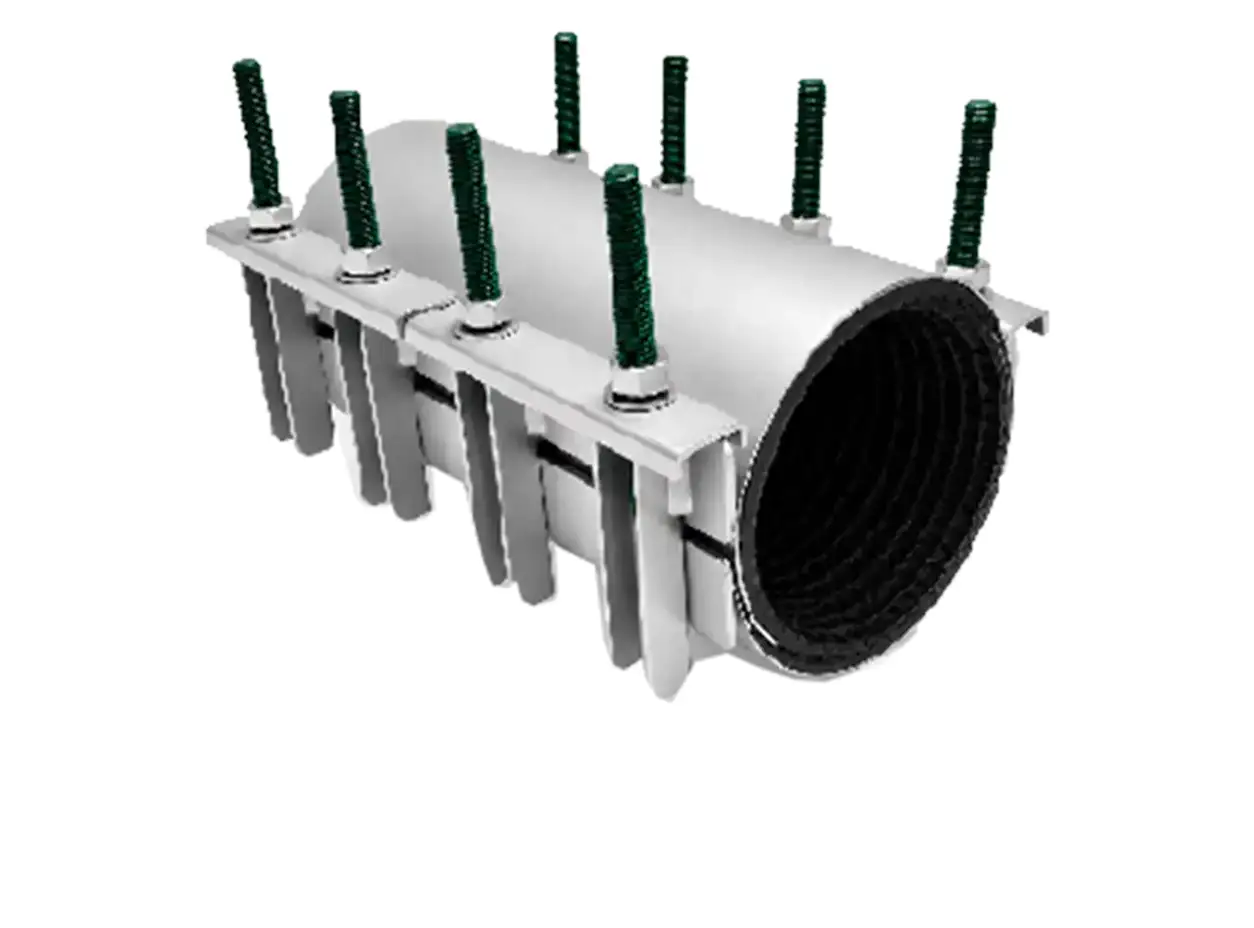

Two-section stainless-steel clamp for permanent, full-circumferential repair in larger OD ranges.
AT A GLANCE
PIPE OD
88 - 670 mm
PRESSURE
16 / 10 / 6 / 4 bar
CLAMP LENGTHS
200, 300, 400, 500, 600 mm
- Full circumferential break repair
- Longitudinal crack stabilization
- Frost damage
- Pin holes
- Local small damage repair
- Potable water pipelines
- High-integrity leak-tight sealing up to the stated pressure rating
- Installation without planned shutdown or pressure loss, where site conditions allow
- Optimized stainless-steel design for efficient field handling
- All-stainless-steel metallic construction for long-term corrosion resistance
- PTFE (Teflon)-coated stainless-steel studs to help prevent galling
- Pickled and passivated after welding to restore corrosion resistance
TECHNICAL DATA & SELECTION
Pipe OD range
88 - 670 mm
Working range
20 - 22 mm
Clamp lengths
200, 300, 400, 500, 600 mm
Band configuration
Double band (two sections)
Tightening torque
15 kg·m up to DN125; 20 kg·m above DN125
Special sizes
Available on request
PRESSURE RATINGS
DN 80-150 → 16 bar
DN 175-500 → 10 bar
DN 600 → 6 bar
DN 700 → 4 bar
TECHNICAL DATA & SELECTION
Pipe OD range
88 - 670 mm
Working range
20 - 22 mm
Clamp lengths
200, 300, 400, 500, 600 mm
Band configuration
Double band (two sections)
Tightening torque
15 kg·m up to DN125; 20 kg·m above DN125
Special sizes
Available on request
Pipe OD range
88 - 670 mm
- Full circumferential break repair
- Longitudinal crack stabilization
- Frost damage
- Pin holes
- Local small damage repair
- Potable water pipelines
- High-integrity leak-tight sealing up to the stated pressure rating
- Installation without planned shutdown or pressure loss, where site conditions allow
- Optimized stainless-steel design for efficient field handling
- All-stainless-steel metallic construction for long-term corrosion resistance
- PTFE (Teflon)-coated stainless-steel studs to help prevent galling
- Pickled and passivated after welding to restore corrosion resistance
| Pipe OD range | 88 - 670 mm |
|---|---|
| Working range | 20 - 22 mm |
| Clamp lengths | 200, 300, 400, 500, 600 mm |
| Band configuration | Double band (two sections) |
| Tightening torque | 15 kg·m up to DN125; 20 kg·m above DN125 |
| Special sizes | Available on request |
