DISTRIBUTION LINE FITTINGS
CABLES CONNECTION DEEP COMRESSION TYPE ALUMINIUM FITTINGS

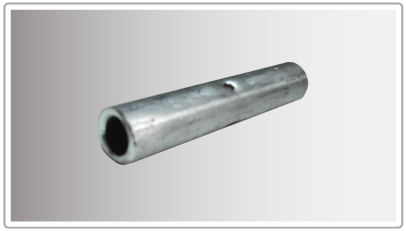

DEEP COMPRESSION ALUMINIUM JUNCTION JOINTS

DEEP COMPRESSION ALUMINIUM JUNCTION JOINTS

SPECIFICATION OF MANUFACTURE PPC SA GR-264 16.12.1977.
DRAWING OF MANUFACTURE   PPC SA GR-264 4/5.
MATERIAL OF MANUFACTURE   Junction Joints are made of aluminium A5 clear 99,50 %.
OFFERED TYPES
.
A/A PPC SA CODE NUMBER MARKING CABLE CROSS-SECTION (mm2) SEPARATING APERTURE RESISTANCE
(Kp)
mm mm
1 430017639 RJ 1A 50 50-50 100 9 20
2 430017676 RJ 1A 95 95-95 100 12,5 20
3 430017688 RJ 2A 150 150-150 120 15,5 25
4 430017690 RJ 2A 150-95 150-95 120 15,5-12,5 25
.
