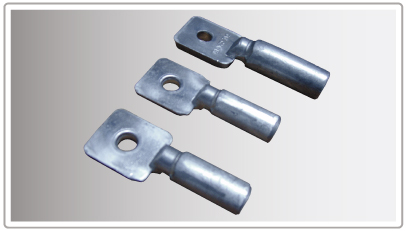

ALUMINIUM COMPRESSION TERMINAL CONNECTORS

ALUMINIUM COMPRESSION TERMINAL CONNECTORS

SPECIFICATION OF MANUFACTURE PPC SA GR-264 16.12.1977.
MANUFACTURE METHOD   Forging.

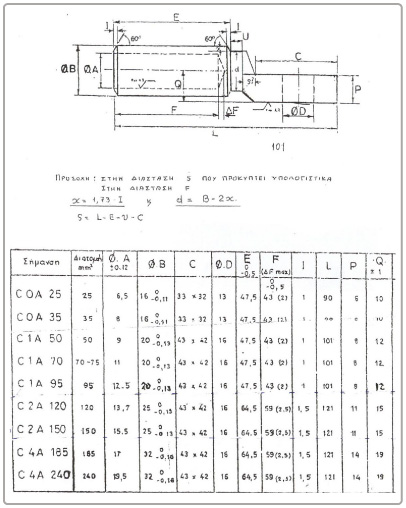

DRAWING OF MANUFACTURE   PPC SA GR-264 1/5.
MATERIAL OF MANUFACTURE   Terminals are made of aluminium A5 clear 99,50 % through extrusion. The cable supporting hole is covered by neutral grease.
OFFERED TYPES
.
A/A PPC CODE NUMBER MARKING CABLE CROSS-SECTION (mm2) A mm B mm D mm
1 430017597 C1A 70 70-75 11 20 16
2 430017603 C1A 95 95 12,5 20 16
3 430017615 C2A 150 150 15,5 25 16
.
